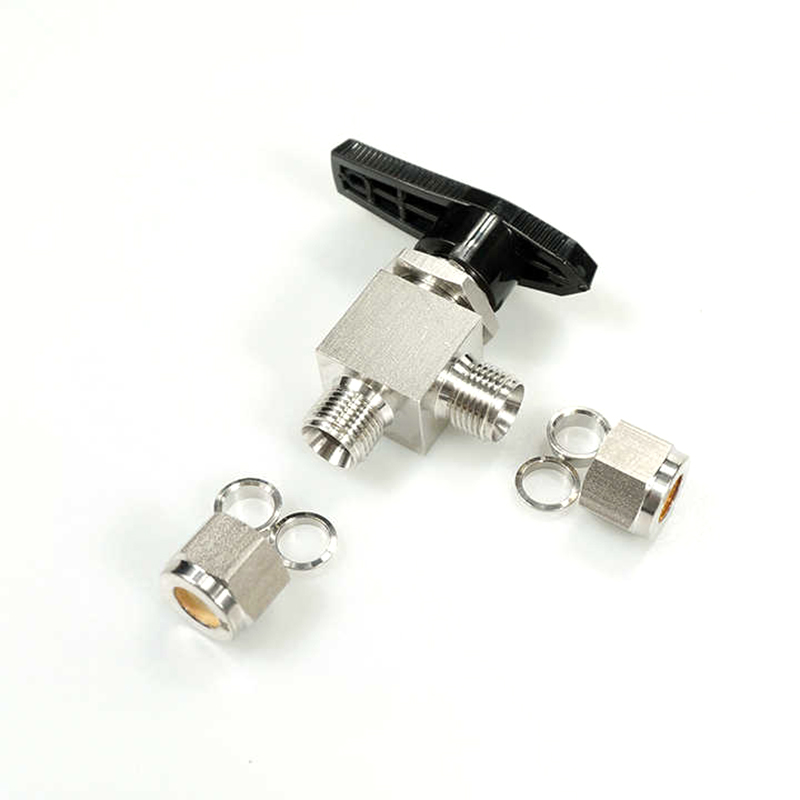

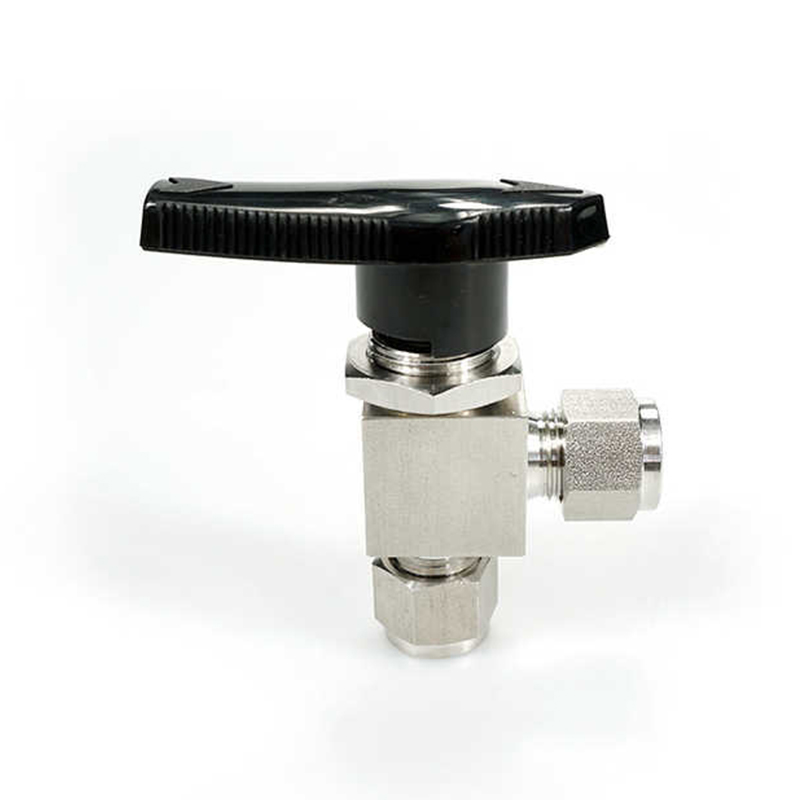

Stainless Steel Double Ferrule 90 Degree Angle Ball Valve

The Stainless Steel Double Ferrule 90 Degree Angle Ball Valve is designed to withstand a maximum working pressure of 3000 PSIG (207 bar), ensuring stable operation under extremely high pressure environments. This design is particularly suitable for high-pressure pipelines, liquid transmission and gas control systems. It can maintain stable flow control when facing system pressure fluctuations without leakage or failure. The unique top inlet design of this ball valve allows the valve to be inspected and repaired without disassembling the system. Through this innovative design, users can maintain the valve without interrupting the production process, greatly reducing equipment downtime. In oil and gas pipelines, the valve can effectively control the flow of fluids and ensure the safe operation of high-pressure oil and gas transmission systems; the ball valve has a dead zone design to ensure the purity of the fluid during transmission and is suitable for applications such as sterility, pharmaceutical production and precision control.

PREV: Stainless Steel Double Ferrule Three-Way Ball Valve NEXT: No next article

Describe
Parameter

Describe

●Operating pressure up to: 3000 psig (207 bar)
●Operating temperature: -65 °F to 300 °F (-54 °C to 148 °C)
●Size from 1/16in. to 3/4in. or 3mm to 18mm
●Valve types are straight-through, three-way and right-angle
●One-piece valve body and one-piece ball shaft
● No dead zones, such as the area between the ball and the valve chamber
●The top entrance design can be inspected and repaired online after the system is removed

Nantong Samson Precision Industry Co., Ltd.

With over 13 years of industry experience, Nantong Samson is a China Stainless Steel Double Ferrule 90 Degree Angle Ball Valve Manufacturers and Stainless Steel Double Ferrule 90 Degree Angle Ball Valve Factory. lSO certified, with strict quality control. Our exceptional service and competitive prices offer excellent value.

Our products are exported to Europe, North America, South America, Australia, Russia, the Middle East, and Southeast Asia. They are favored by wholesalers, retailers, service providers, and factories, building strong and lasting partnerships based on trust and quality.

Certificate Of Honor

News

Why corrosion-resistant pipe fittings are an indispensable part of industrial pipeline systems
16 Apr, 2025
In modern industrial production, pipeline systems are core facilities to ensure the smooth transportation of raw materials and the production process....
Read More
Chemical Processing Tube Fittings: Key Components to Improve the Efficiency of Industrial Pipeline Systems
09 Apr, 2025
In the modern chemical industry, chemical processing tube fittings are not only the basic connection parts of the pipeline system, but also the key co...
Read More
Market analysis of double ferrule fittings: Demand growth and technological innovation drive industry development
01 Apr, 2025
Double Ferrule Fittings as a key component in the pipeline connection system, it is widely used in the oil, gas, chemical, power, aerospace and other ...
Read More
How does the performance of Single Ferrule Fittings compare to other types of compression fittings in terms of reliability?
20 Mar, 2025
The seal integrity of Single Ferrule Fittings is achieved by compressing a single ferrule against the tubing and the fitting body. This creates a reli...
Read More
How do these stainless steel double ferrule fittings handle vibration and thermal expansion in piping systems?
20 Mar, 2025
The design of Stainless Steel Double Ferrule Fittings is a critical factor in their ability to withstand the effects of vibration and thermal expansio...
Read More
If the instrument ball valve is leaking or leaking, how to troubleshoot the fault?
20 Mar, 2025
In industrial piping systems, instrument ball valves are crucial control elements for regulating and controlling the flow of fluid. Over time or due t...
Read More

Message Feedback

Basic Ordering Number	Connection Type and Size	Orifice in. (mm)	Cv		Dimension,in. (mm)
			Straight	Angle	A	C	D	E	F	H
-OIB-MT3-2	3mm Tube	0.09 (2.4)	0.20	0.15	2.01 (51.0)	0.34 (8.6)	0.97 (24.6)	1.10 (28.0)	1.43 (36.2)	0.59 (15.0)
-OIB-MT3-2-3W
-OIB-MT6-5	6mm Tube	0.19 (4.8)	1.40	0.90	2.39 (60.7)	0.44 (11.2)	1.29 (32.8)	1.57 (39.9)	1.64 (41.7)	0.78 (19.8)
-OIB-MT6-5-3W
-OIB-MT8-5	8mm Tube	0.19 (4.8)	1.40	0.90	2.46 (62.5)	0.44 (11.2)	1.29 (32.8)	1.64 (41.7)	1.64 (41.7)	0.78 (19.8)
-OIB-MT8-5-3W
-OIB-MT10-7	10mm Tube	0.28 (7.1)	6.00	2.0	3.05 (77.5)	0.56 (14.2)	1.43 (36.3)	2.05 (52)	2.19 (55.5)	1.13 (28.6)
-OIB-MT10-7-3W
-OIB-MT12-10	12mm Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-MT12-10-3W
-OIB-MT14-10	14mm Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 38.1)
-OIB-MT14-10-3W
-OIB-MT18-10	18mm Tube	0.41 (10.3)	12.0	4.60	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-MT18-10-3W

-OIB-FT2-2-A	1/8"Tube	0.09 (2.4)	0.20	0.15	2.01 (51.0)	0.34 (8.6)	0.97 (24.6)	1.10 (28.0)	1.43 (36.2)	0.59 (15.0)
-OIB-FT2-2-3W
-OIB-FT4-5-A	1/4"Tube	0.19 (4.8)	1.40	0.90	2.39 (60.7)	0.44 (11.2)	1.29 (32.8)	1.57 (39.9)	1.64 (41.7)	0.78 (19.8)
-OIB-FT4-5-3W
-OIB-FT6-7-A	3/8"Tube	0.28 (7.1)	6.00	2.0	3.05 (77.5)	0.56 (14.2)	1.43 (36.3)	2.05 (52)	2.19 (55.5)	1.13 (28.6)
-OIB-FT6-7-3W
-OIB-FT8-10-A	1/2"Tube	0.41 (10.3)	6.40	3.80	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-FT8-10-3W
-OIB-FT12-10-A	3/4”Tube	0.41 (10.3)	12.0	4.60	3.92 (99.6)	0.69 (17.5)	1.74 (44.2)	3.13 (79.6)	2.67 (67.7)	1.50 (38.1)
-OIB-FT12-10-3W
