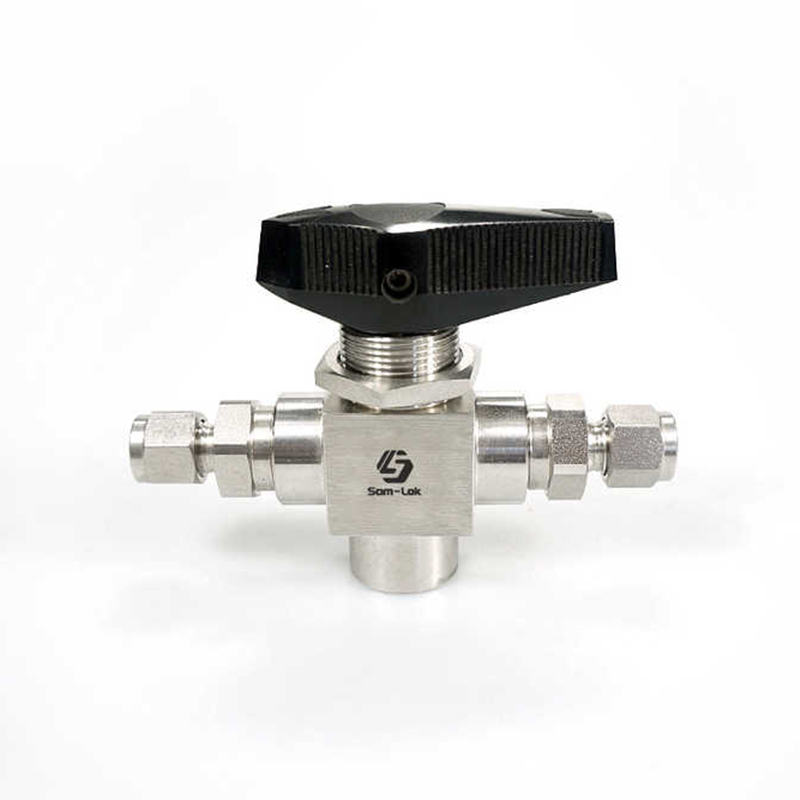

Stainless Steel Forged Trunnion Ball Valve

The Stainless Steel Forged Trunnion Ball Valve uses a spring-loaded seat mechanism that plays a key role in compensating for the wear that naturally occurs over time. As the valve is repeatedly operated, the seat may begin to degrade or deform. The spring-loaded seat ensures that the sealing integrity is maintained, preventing leakage and ensuring reliable sealing performance throughout the service life of the valve. This ball valve is able to maintain excellent sealing performance under high and low pressure conditions. The seat design and precision manufacturing ensure that it can provide a tight seal regardless of the pressure fluctuations within the system. Whether it is handling high-pressure pipelines or low-pressure distribution lines, the valve can ensure that fluid leakage is minimized, thereby ensuring operational safety and system integrity.

PREV: No previous article NEXT: No next article

Describe
Parameter

Describe

●Operating pressure up to: 10,000 psig (413 bar)
●Operating temperature: -65 to 450 °F (-54 to 232°C)
●Spring-loaded seat to compensate for wear
●High pressure and low pressure have good sealing performance
●Bottom loading of the stem prevents the stem from rushing out
●Low operating torque, long service life
●Heavy-duty handle to indicate flow direction
●Manual, electric or pneumatic actuators are available
●Tee bottom entrance only

Nantong Samson Precision Industry Co., Ltd.

With over 13 years of industry experience, Nantong Samson is a China Stainless Steel Forged Trunnion Ball Valve Manufacturers and Stainless Steel Forged Trunnion Ball Valve Factory. lSO certified, with strict quality control. Our exceptional service and competitive prices offer excellent value.

Our products are exported to Europe, North America, South America, Australia, Russia, the Middle East, and Southeast Asia. They are favored by wholesalers, retailers, service providers, and factories, building strong and lasting partnerships based on trust and quality.

Certificate Of Honor

News

Why corrosion-resistant pipe fittings are an indispensable part of industrial pipeline systems
16 Apr, 2025
In modern industrial production, pipeline systems are core facilities to ensure the smooth transportation of raw materials and the production process....
Read More
Chemical Processing Tube Fittings: Key Components to Improve the Efficiency of Industrial Pipeline Systems
09 Apr, 2025
In the modern chemical industry, chemical processing tube fittings are not only the basic connection parts of the pipeline system, but also the key co...
Read More
Market analysis of double ferrule fittings: Demand growth and technological innovation drive industry development
01 Apr, 2025
Double Ferrule Fittings as a key component in the pipeline connection system, it is widely used in the oil, gas, chemical, power, aerospace and other ...
Read More
How does the performance of Single Ferrule Fittings compare to other types of compression fittings in terms of reliability?
20 Mar, 2025
The seal integrity of Single Ferrule Fittings is achieved by compressing a single ferrule against the tubing and the fitting body. This creates a reli...
Read More
How do these stainless steel double ferrule fittings handle vibration and thermal expansion in piping systems?
20 Mar, 2025
The design of Stainless Steel Double Ferrule Fittings is a critical factor in their ability to withstand the effects of vibration and thermal expansio...
Read More
If the instrument ball valve is leaking or leaking, how to troubleshoot the fault?
20 Mar, 2025
In industrial piping systems, instrument ball valves are crucial control elements for regulating and controlling the flow of fluid. Over time or due t...
Read More

Message Feedback

Basic Ordering Number	Connection Type and Size	Orifice in. (mm)	Cv	Dimension,in. (mm)
Basic Ordering Number	Connection Type and Size	Orifice in. (mm)	Cv	A	B	C	D	E	F
-TB-FT4-5-3W	1/4 Tube	0.19 (4.8)	0.75	4.09 (103.8)	2.04 (51.9)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TB-FT6-5-3W	3/8 Tube	0.19 (4.8)	0.75	4.25 (108)	2.13 (54.0)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TB-FT8-5-3W	1/2 Tube	0.19 (4.8)	0.75	4.60 (116.8)	2.30 (58.4)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)

-TB-MT4-5-3W	6mm Tube	0.19 (4.8)	0.75	4.09 (103.8)	2.04 (51.9)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TB-MT8-5	8mm Tube	0.19 (4.8)	0.75	4.14 (105.2)	2.07 (52.6)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TB-MT10-5	10mm Tube	0.19 (4.8)	0.75	4.25 (108)	2.13 (54.0)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TB-MT12-5	12mm Tube	0.19 (4.8)	0.75	4.60 (116.8)	2.30 (58.4)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
TBH-FT4-5-3W	1/4 Tube	(4.8)	0.75	4.09 (103.8)	2.04 (51.9)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TBH-FT6-5-3W	3/8 Tube	0.19 (4.8)	0.75	4.25 (108)	2.13 (54.0)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TBH-FT8-5-3W	1/2 Tube	0.19 (4.8)	0.75	4.60 (116.8)	2.30 (58.4)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)

-TBH-MT4-5-3W	6mm Tube	0.19 (4.8)	0.75	4.09 (103.8)	2.04 (51.9)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TBH-MT8-5-3W	8mm Tube	0.19 (4.8)	0.75	4.14 (105.2)	2.07 (52.6)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
-TBH-MT10-5-3W	10mm Tube	0.19 (4.8)	0.75	4.25 (108)	2.13 (54.0)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
TBH-MT12-5-3W	12mm Tube	0.19 (4.8)	0.75	4.60 (116.8)	2.30 (58.4)	1.06 (26.9)	1.88 (47.7)	1.57 (40.0)	2.56 (65.0)
