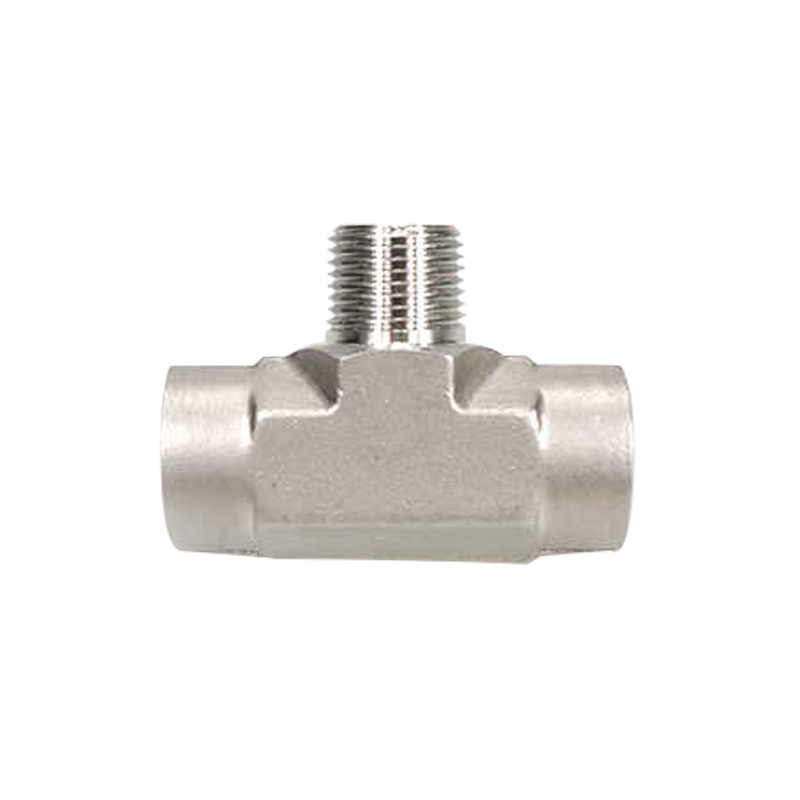

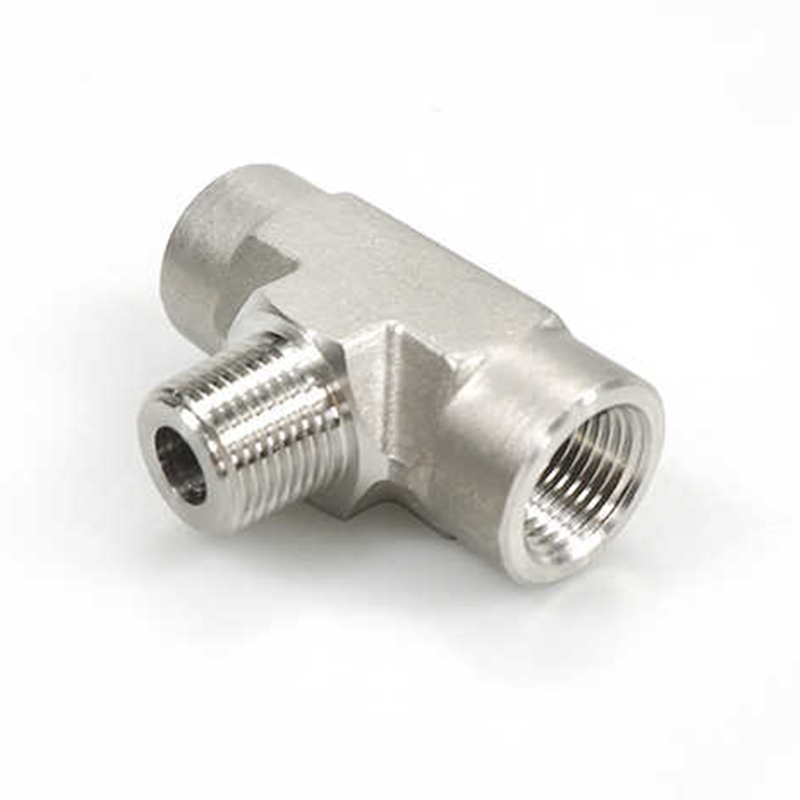

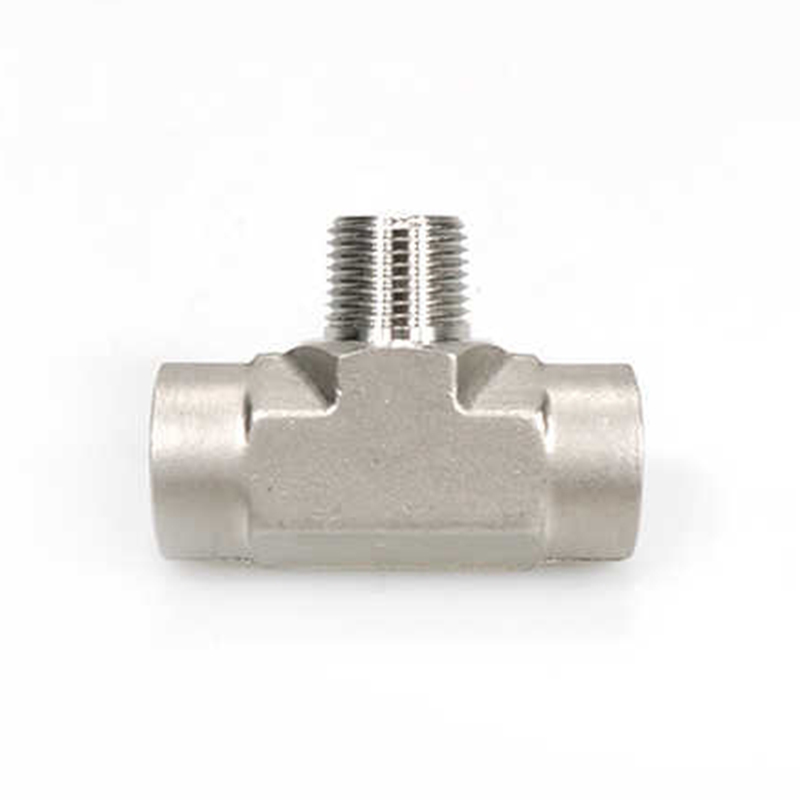

Stainless Steel Male Branch Tee Pipe Fitting

Stainless Steel Male Branch Tee Pipe Fitting is manufactured with advanced forging technology. The forging process ensures that the inner and outer surfaces of the pipe fittings are smooth and free of defects, increasing its overall strength and pressure resistance. It can be customized according to customer needs. Whether it is size, thread specifications, or shape, logo and other details, they can be adjusted according to customer specific requirements. Customers can provide their own design requirements to ensure that the product better adapts to personalized use needs. This pipe fitting is suitable for multiple industries such as petroleum, natural gas, chemical industry, HVAC, and electricity. It can be used stably for a long time under high temperature, high pressure and corrosive environment. It is particularly suitable for transmitting various fluid media such as oil and water. It is widely used in hydraulic systems, air compression systems, water supply pipeline systems, etc.

PREV: Stainless Steel Female Run Tee Pipe Fitting NEXT: No next article

Describe
Parameter

Describe

Material: Stainless Steel

Technics: Forged

Customed: Available

Medium: oil, water, etc.

Size: 1/8-1 1/2inh

Place of Origin: Jiangsu, China (Mainland)

Connection: male-to-female threaded

Head Code: Round

Application: General

Logo: Any logo is available

Nantong Samson Precision Industry Co., Ltd.

With over 13 years of industry experience, Nantong Samson is a China Stainless Steel Male Branch Tee Pipe Fitting Manufacturers and Stainless Steel Male Branch Tee Pipe Fitting Factory. lSO certified, with strict quality control. Our exceptional service and competitive prices offer excellent value.

Our products are exported to Europe, North America, South America, Australia, Russia, the Middle East, and Southeast Asia. They are favored by wholesalers, retailers, service providers, and factories, building strong and lasting partnerships based on trust and quality.

Certificate Of Honor

News

The future of zero-leakage valves: driving energy efficiency and reducing waste
23 Apr, 2025
As the world's attention to energy efficiency continues to deepen and environmental standards become increasingly stringent, Zero-Leakage Valves are b...
Read More
Why corrosion-resistant pipe fittings are an indispensable part of industrial pipeline systems
16 Apr, 2025
In modern industrial production, pipeline systems are core facilities to ensure the smooth transportation of raw materials and the production process....
Read More
Chemical Processing Tube Fittings: Key Components to Improve the Efficiency of Industrial Pipeline Systems
09 Apr, 2025
In the modern chemical industry, chemical processing tube fittings are not only the basic connection parts of the pipeline system, but also the key co...
Read More
Market analysis of double ferrule fittings: Demand growth and technological innovation drive industry development
01 Apr, 2025
Double Ferrule Fittings as a key component in the pipeline connection system, it is widely used in the oil, gas, chemical, power, aerospace and other ...
Read More
How does the performance of Single Ferrule Fittings compare to other types of compression fittings in terms of reliability?
20 Mar, 2025
The seal integrity of Single Ferrule Fittings is achieved by compressing a single ferrule against the tubing and the fitting body. This creates a reli...
Read More
How do these stainless steel double ferrule fittings handle vibration and thermal expansion in piping systems?
20 Mar, 2025
The design of Stainless Steel Double Ferrule Fittings is a critical factor in their ability to withstand the effects of vibration and thermal expansio...
Read More

Message Feedback

NPT Threads
P-NPT Size	Basic Ordering Number	Dimension,in(mm)						Working Pressure psig(bar)
P-NPT Size	Basic Ordering Number	L	F(Flat)	B	E	Lx	Bx	316SS,Steel	Brass
1/16	TMB-FN1-MN1	0.86(21.8)	0.44(11.1)	0.12(3.0)	0.38(97)	0.86(21.8)	0.39(9.9)	9200(633)	4600(316)
1/8	-TMB-FN2-MN2	1.04(26.4)	0.50(12.7)	0.19(4.8)	0.41(10.4)	0.87(22.1)	0.38(9.7)	6200(427)	3100(213)
1/4	-TMB-FN4-MN4	1.17(29.7)	0.69(17.5)	0.28(7.1)	0.59(15.0)	1.17(29.7)	0.56(14.2)	7200(496)	3600(248)
3/8	-TMB-FN6-MN6	1.42(36.1)	0.81(20.6)	0.38(9.6)	0.59(15.0)	1.26(32.0)	0.56(14.2)	5600(385)	2800(192)
1/2	-TMB-FN8-MN8	1.56(39.6)	1.00(25.4)	0.47(11.9)	0.78(19.8)	1.56(39.6)	0.75(19.1)	5600(385)	2800(192)
3/4	-TMB-FN12-MN12	1.92(48.8)	1.25(31.8)	0.62(15.7)	0.81(20.6)	1.67(42.4)	0.75(19.1)	5100(351)	2500(172)
1	-TMB-FN16-MN16	1.91(48.5)	1.69(42.9)	0.88(22.4)	1.00(25.4)	1.94(49.3)	0.94(23.9)	5300(365)	2600(179)
ISO Tapered Threads
P-RT Size	Basic Ordering Number	Dimension,in(mm)						Working Pressure psig(bar)
P-RT Size	Basic Ordering Number	L	F(Flat)	B	E	Lx	Bx	316SS,Steel	Brass
1/16	TMB-FR1-MR1	0.86(21.8)	0.44(11.1)	0.12(3.0)	0.38(97)	0.86(21.8)	0.39(9.9)	9200(633)	4600(316)
1/8	-TMB-FR2-MR2	1.04(26.4)	0.50(12.7)	0.19(4.8)	0.41(10.4)	0.87(22.1)	038(9.7)	6200(427)	3100(213)
1/4	TMB-FR4-MR4	1.17(29.7)	0.69(17.5)	0.28(7.1)	0.59(15.0)	1.17(29.7)	0.56(14.2)	7200(496)	3600(248)
3/8	-TMB-FR6-MR6	1.42(36.1)	0.81(20.6)	0.38(9.6)	0.59(15.0)	1.26(32.0)	0.56(14.2)	5600(385)	2800(192)
1/2	-TMB-FR8-MR8	1.56(39.6)	1.00(25.4)	0.47(11.9)	0.78(19.8)	1.56(39.6)	0.75(19.1)	5600(385)	2800(192)
3/4	-TMB-FR12-MR12	1.92(48.8)	1.25(31.8)	0.62(15.7)	0.81(20.6)	1.67(42.4)	0.75(19.1)	5100(351)	2500(172)
1	-TMB-FR16-MR16	1.91(48.5)	1.69(42.9)	0.88(22.4)	1.00(25.4)	1.94(49.3)	0.94(23.9)	5300(365)	2600(179)
