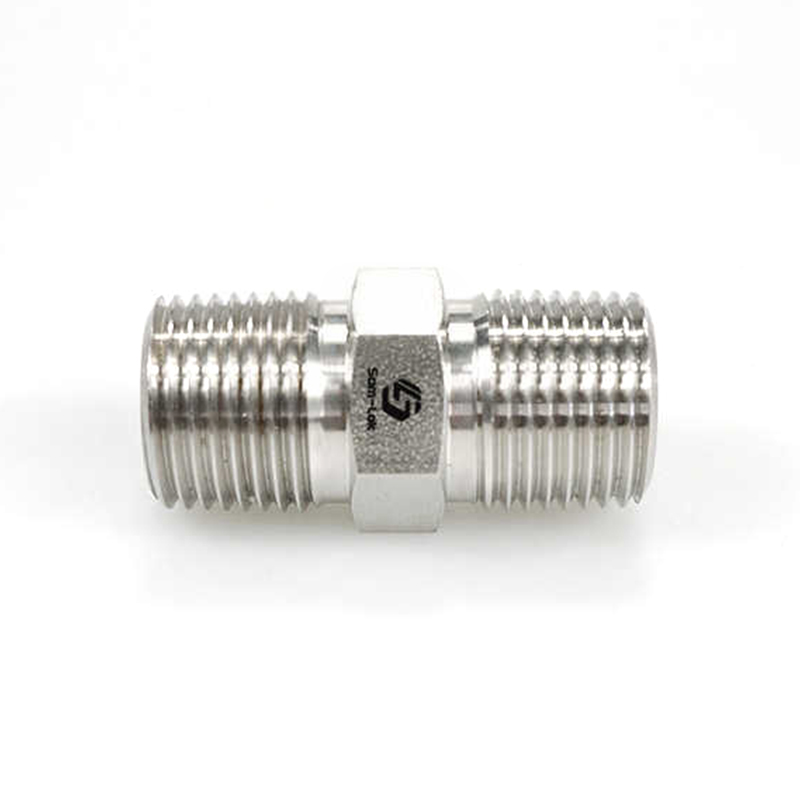

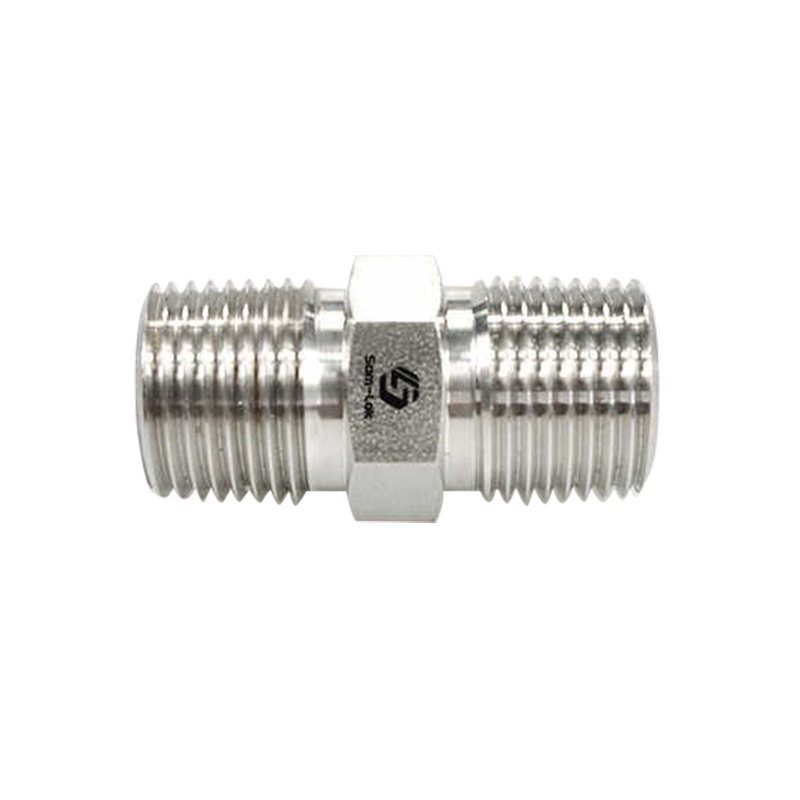

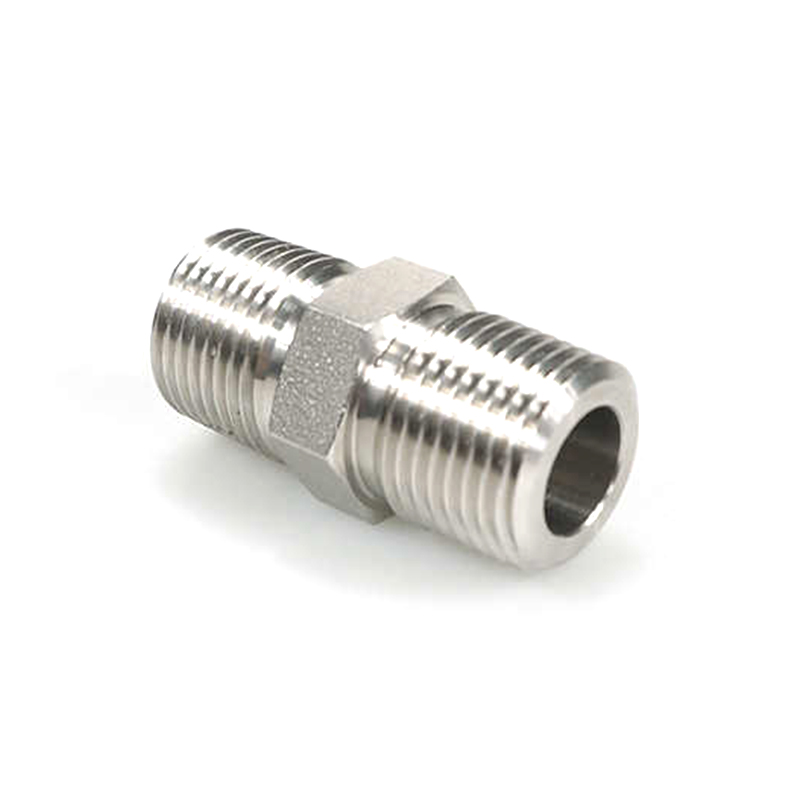

Stainless Steel Hex Nipple

Stainless Steel Hex Nipple is one of the commonly used connection parts in industrial pipe connection systems. It is mainly used to connect two pipes or pipes with other accessories. The joint is manufactured by forging process, which makes the product have higher strength and toughness. During the forging process, the grain structure of the metal is optimized, which improves the overall mechanical properties of the material, especially the tensile strength and wear resistance. Compared with casting, forged products perform better under load and pressure conditions. This joint is suitable for the transmission system of various industrial fluids, including oil, water, gas and other industrial liquids. Its high strength and corrosion resistance enable it to work stably for a long time in various environments.

PREV: Stainless Steel Male Branch Tee Pipe Fitting NEXT: No next article

Describe
Parameter

Describe

Material: Stainless Steel

Technics: Forged

Customed: Available

Medium: oil, water, etc.

Size: 1/8-1 1/2inh

Place of Origin: Jiangsu, China (Mainland)

Connection: male-to-male threaded

Head Code: Round

Application: General

Logo: Any logo is available

Parameter

Male NPT Threads
P-NPT Size	Px-NPT Size	Basic Ordering Number	Dimension,in(mm)					Working Pressure psig(bar)
P-NPT Size	Px-NPT Size	Basic Ordering Number	L	F(Hex)	B	Bx	E	316SS,Steel	Brass
1/16	1/16	-THN-MN1	1.01(25.6)	0.31(7.9)	0.38(9.7	0.38(9.7)	0.12(3.0)	11000(757)	5500(378)
1/8	1/16	-THN-MN2-MN1	1.01(25.6)	0.44(11.1)	0.38(9.7	0.38 (9.7)	0.12(3.0)	11000(757)	5500(378)
1/8	1/8	-THN-MN2	1.01(25.6)	0.44(11.1)	0.38(9.7)	0.38 (9.7)	0.19(4.8)	10000(689)	5000(344)
1/4	1/16	-THN-MN4-MN1	1.22(31.0)	0.56(14.3)	0.56(14.2)	0.38 (9.7)	0.12(3.0)	11000(757)	5500(378)
1/4	1/8	-THN-MN4-MN2	1.22(31.0)	0.56(14.3)	0.56(14.2)	0.38 (9.7)	0.19(4.8)	10000(689)	5000(344
1/4	1/4	-THN-MN4	1.40(35.6)	0.56(14.3)	0.56(14.2)	0.56(14.2	0.28(7.1)	8000(551)	4000(275)
3/8	1/16	-THN-MN6-MN1	1.25(31.8)	0.69(17.5)	0.56(14.2)	0.38(9.7)	0.12(3.0)	11000(757)	5500(378)
3/8	1/8	-THN-MN6-MN2	1.25(31.8)	0.69(17.5)	0.56(14.2)	0.38(9.7)	0.19(4.8)	10000(689	5000(344
3/8	1/4	-THN-MN6-MN4	1.43(36.3)	0.69(17.5)	0.56(14.2)	0.56(14.2	0.28(7.1)	8000(551)	4000(275)
3/8	3/8	-THN-MN6	1.43(36.3)	0.69(17.5)	0.56(14.2)	0.56(14.2)	0.38(9.7)	7800(537)	3900(268)
1/2	1/8	-THN-MNB-MN2	1.47(37.3)	0.87(22.2)	0.75(19.1)	0.38 (9.7)	0.19(4.8)	7700(530)	3800(261)
1/2	1/4	-THN-MNB-MN4	1.65(41.9)	0.87(22.2)	0.75(19.1)	0.56(14.2)	0.28(7.1)	8000(551)	4000(275)
1/2	3/8	-THN-MNB-MN6	1.65(41.9)	0.87(22.2)	0.75(19.1)	0.56(14.2)	0.38(9.7)	7800(537)	3900(268)
1/2	1/2	-THN-MN8	1.84(46.7)	0.87(22.2)	0.75(19.1)	0.75(19.1)	0.47(11.9)	7700(530)	3800(261)
3/4	1/8	-THN-MN12-MN2	1.59(40.4)	1.06(27.0)	0.75(19.1)	0.38 (9.7)	0.19(4.8)	10000(689)	5000(344)
3/4	1/4	-THN-MN12-MN4	1.65(41.9)	1.06(27.0)	0.75(19.1)	0.56(14.2)	0.28(7.1)	8000(551)	4000(275)
3/4	3/8	-THN-MN12-MN6	1.78(45.2)	1.06(27.0)	0.75(19.1)	0.56(14.2)	0.38(9.7)	7800(537)	3900(268)
3/4	1/2	-THN-MN12-MN8	1.84(46.7)	1.06(27.0)	0.75(19.1)	0.75(19.1)	0.47(11.9)	7700(530)	3800(261)
3/4	3/4	-THN-MN12	1.84(46.7)	1.06(27.0)	0.75(19.1)	0.75(19.1)	0.62(15.7)	7300(502)	3600(248)
1	1/8	-THN-MN16-MN2	1.78(45.2)	1.37(34.9)	0.94(23.9)	0.38 (9.7)	0.19(4.8)	10000(689)	5000(344
1	1/4	-THN-MN16-MN4	1.94(49.3)	1.37(34.9)	0.94(23.9)	0.56(14.2	0.28(7.1)	5300(365)	2600(179)
1	3/8	-THN-MN16-MN6	1.97(50.0)	1.37(34.9)	0.94(23.9)	0.56(14.2)	0.38(9.7)	7800(537)	3900(268)
1	1/2	-THN-MN16-MN8	2.13(54.1)	1.37(34.9)	0.94(23.9)	0.75(19.1)	0.47(11.9)	7700(530)	3800(261)
1	3/4	-THN-MN16-MN12	2.13(54.1)	1.37(34.9)	0.94(23.9)	0.75(19.1)	0.62(15.7)	7300(502)	3600(248)
1	1	-THN-MN16	2.32(58.9)	1.37(34.9)	0.94(23.9)	0.94(23.9)	0.88(22.4)	5300(365)	2600(179)
11/4	1	-THN-MN20-MN16	2.45(62.2)	1.75(44.5)	0.94(23.9)	0.94(23.9)	0.88(22.4)	5300(365)	2600(179)
11/4	11/4	-THN-MN20	2.48(62.9)	1.75(44.5)	0.94(23.9)	0.94(23.9)	1.13(28.6)	6000(410)	3000(200)
11/2	11/2	-THN-MN24	2.61(66.3)	2.00(50.8)	1.03(26.2)	1.03(26.2)	1.34(34.0)	5000(344)	2500(172)
2	2	-THN-MN32	3.06(77.7)	2.75(69.9)	1.03(26.2)	1.03(26.2	1.77(45.0)	3900(268)	1900(130)

Nantong Samson Precision Industry Co., Ltd.

With over 13 years of industry experience, Nantong Samson is a China Stainless Steel Hex Nipple Manufacturers and Stainless Steel Hex Nipple Factory. lSO certified, with strict quality control. Our exceptional service and competitive prices offer excellent value.

Our products are exported to Europe, North America, South America, Australia, Russia, the Middle East, and Southeast Asia. They are favored by wholesalers, retailers, service providers, and factories, building strong and lasting partnerships based on trust and quality.
